1033
Rivinus' membrane

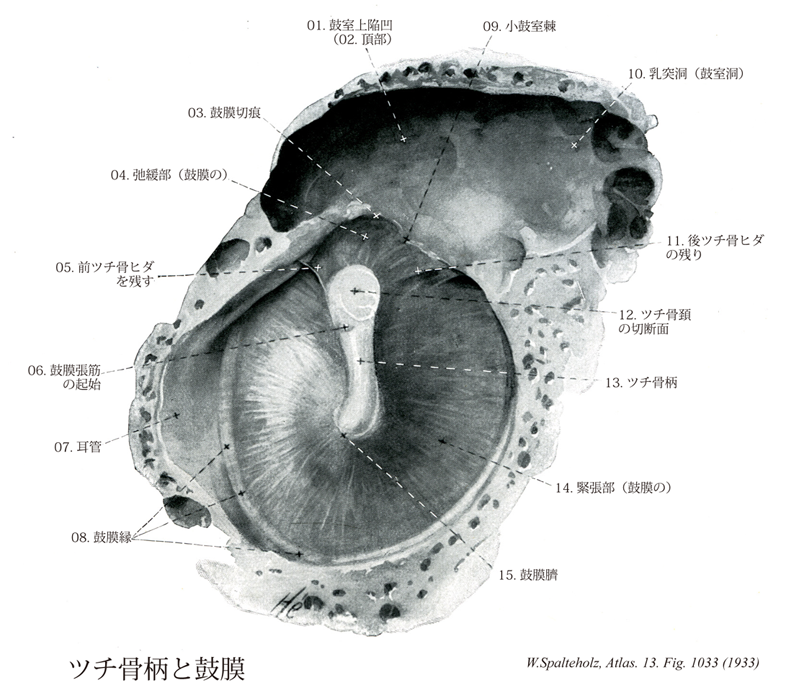

- 1033_00Rivinus' membrane【Tympanic membrane鼓膜 Membrana tympanica】 Membrane stretched diagonally at the end of the external acoustic meatus. It has a diameter of 9-11 mm.
→(鼓膜は外耳道と中耳すなわち鼓室との境にある直径約1cmのほぼ卵円形薄い膜。鼓膜は外耳道に対して傾斜し、外面を前下方に向けている。鼓膜の外面は平面でなく、内方に向かってやや陥凹している。鼓膜は生体で耳鏡を外耳道に挿入して観察すると、やや透明で、白色の線条がみられツチ骨柄によってできるツチ骨条といわれる。ツチ骨条の上端には外側突起の部分がツチ骨隆起である。その前後に前ツチ骨ヒダと後ツチ骨ヒダとがあり、緊張部と弛緩部との境界である。緊張部ではその前上方より鼓膜中央まで内面にツチ骨柄が付着するために鼓膜痔帯が内方に向かって漏斗状に陥入し、鼓膜臍を形成する。鼓膜は外側の皮膚面、固有層、内側の粘膜面の三者からなる。皮膚面は外耳道の皮膚のつづきで重層扁平上皮を有する。固有層は線維性結合組織からなり、その線維の走向により内外の2層を区別することができる。粘膜面は鼓室表面の粘膜のつづきであって、単層扁平上皮によりおおわれている。鼓膜の皮膚面には外耳道神経の枝が、また粘膜面には鼓室神経の枝が、それぞれ分布する。)
- 1033_01【Epitympanic recess鼓室上陥凹 Recessus epitympanicus】 Dome of the tympanic cavity above the upper border of the tympanic membrane that arches upward and laterally.
→(鼓膜上縁の上に、上外側へ向けてできた陥凹。 (Feneis))
- 1033_02【Cupular part of epitympanic recess頂部(鼓室上陥凹の) Pars cupularis recessi epitympanici】 Superior portion of the epitympanic recess.
→()
Rivinus' notch
- 1033_03Rivinus' notch【Tympanic notch鼓膜切痕 Incisura tympanica】 Convexity between the greater and lesser tympanic spines. In newboms it is the gap between the upper ends of the incomplete tympanic ring. It is later filled by the squamous part of the temporal bone.
→(大鼓室棘と小鼓室棘間の陥凹。新生児では鼓室輪の自由端間にある上方の裂け目。)
Shrapnell's membrane
- 1033_04Shrapnell's membrane【Pars flaccida of tympanic membrane弛緩部;シュラプネル膜(鼓膜の) Pars flaccida membranae tympanicae】 Smaller, flaccid part of the tympanic membrane above the anterior and posterior malleolar folds.
→((Shrapnell膜):前および後ツチ骨ヒダの上方部。 (Feneis))
- 1033_05【Anterior malleolar fold; Anterior mallear fold前ツチ骨ヒダ Plica mallearis anterior】 Fold on the inner surface of the tympanic membrane that extends anteriorly with a concave inferior border from the base of the handle of malleus.
→(鼓膜内側のヒダ。下方へはくぼみをなしてのび、前方へはツチ骨柄の根元からのびる。 (Feneis) TAの代用語ではAnterior maleolar foldとなっているがAnterior mallear foldが適当なので併記してある。)
Eustachian muscle
- 1033_06Eustachian muscle【Tensor tympani muscle鼓膜張筋 Musculus tensor tympani】 Muscle lying in the canal for the tensor tympani above the auditory tube. Its tendon runs laterally at nearly a right angle around the processus cochleariformis and attaches to the base of the handle of malleus. I: Mandibular nerve.
→(耳管上方の鼓膜張筋半管中にある。腱はサジ状突起でほぼ直角に外側へまがり、ツチ骨柄の底部へつく。神:鼓膜張筋神経。 (Feneis))
Eustachian tube
- 1033_07Eustachian tube【Pharyngotympanic tube; Auditory tube耳管;咽鼓管;咽頭鼓室管;オイスタヒイ管 Tuba auditiva; Tuba auditoria】 Nearly 4 cm long, partly cartilaginous, partly bony passageway connecting the middle ear and nasopharynx that serves to ventilate the tympanic cavity.
→(『ユースタキ管、欧氏管、オイスタヒ管』:日本ではオイスタキオ管とかユースタキ管ともいわれる。イタリアの解剖学者Bartolommeo Eustachio [Eustachius] (1524-1574)の名を冠するが、アリストテレスらも記載している。彼の名はオイスタヒ弁Eustachian valve(=下大静脈弁)にも残っている。耳管は鼓室と咽頭腔とを結ぶ長さ約33mmの管であって、前者へは耳管鼓室口をもって、後者へは耳管咽頭口をもって、それぞれ開く。耳管の内腔は平時は閉じているが、食物を飲み込むときには口蓋帆張筋などの働きにより開くようになっている。食物に限らず唾液をのみをごくりと飲み込む際にも同じこと起こる。耳管の粘膜は咽頭鼻部の粘膜のつづきとなっており、線毛上皮を有する。粘膜固有層内には耳管線(粘液を分泌する)の腺体やリンパ小節が含まれている。耳管粘膜に接する耳管壁部分は咽頭に近い部分では耳管軟骨により保護されている(耳管軟骨部)が、鼓室に近い部分(骨部)では骨膜となっている。)
- 1033_08【Margin of tympanic membrane鼓膜縁 Limbus membranae tympani】
→()
- 1033_09【Lesser tympanic spine小鼓室棘 Spina tympanica minor】 Posterior border of the tympanic ring formed by the tympanic part of the temporal bone.
→(鼓室からなる輪の後端で、鼓膜の附着部となる。)
- 1033_10【Mastoid antrum; Tympanic antrum乳突洞;鼓室洞 Antrum mastoideum; Antrum tympanicum】 Space continuous with the tympanic cavity to posterosuperior. The mastoid cells extend from here downward.
→(乳突洞は後方で乳突蜂巣とつながり、前方では洞孔を経て中耳の上鼓室陥凹とつながる側頭骨錐体部の空洞。)
- 1033_11【Posterior fold of malleus後ツチ骨ヒダ Plica mallearis posterior】 Fold extending from the base of the handle of malleus as far as the posterosuperior portion of the tympanic ring. It contains the posterior portion of the chorda tympani.
→(ツチ骨柄の底部より鼓室輪の後上部へいたるヒダ。鼓索神経の後部を含む。 (Feneis))
- 1033_12【Neck of malleusツチ骨頚 Collum mallei】 Segment connecting the head and handle of malleus.
→(ツチ骨頚は頭の下の細い部で、鼓膜の弛緩部の高さにある。)
- 1033_13【Handle of malleusツチ骨柄 Manubrium mallei】 Manubrium of malleus that is fused along its lateral surface with the tympanic membrane as far as the lateral process.
→(ツチ骨柄は細長く後下方にのびる部で、鼓膜の内面に付着する。)
- 1033_14【Pars tensa of tympanic membrane; Tens part of tympanic membrane緊張部(鼓膜の) Pars tensa membranae tympanicae】 Much larger portion of the tympanic membrane that is stretched within the tympanic ring.
→(鼓膜溝にある線維軟骨輪に付く鼓膜の大部分は、緊張しているので、緊張部といわれる。)
- 1033_15【Umbo of tympanic membrane鼓膜臍 Umbo membranae tympanicae】 Portion of the membrane lying at the tip of the handle of malleus that draws the tympanic membrane inward.
→(緊張部の中央は、内方に向かって最も深く凹み、鼓膜臍と呼ばれる。)
